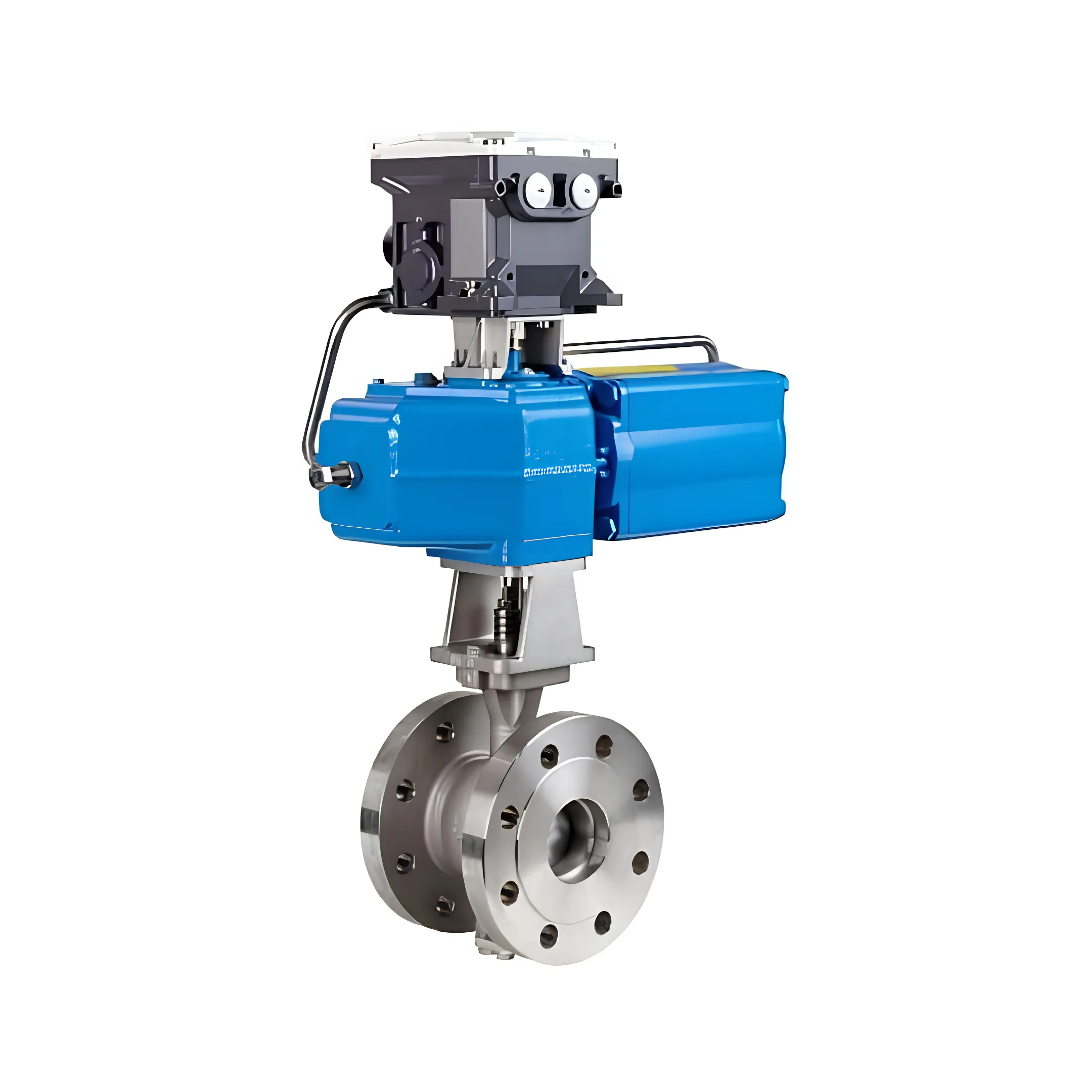

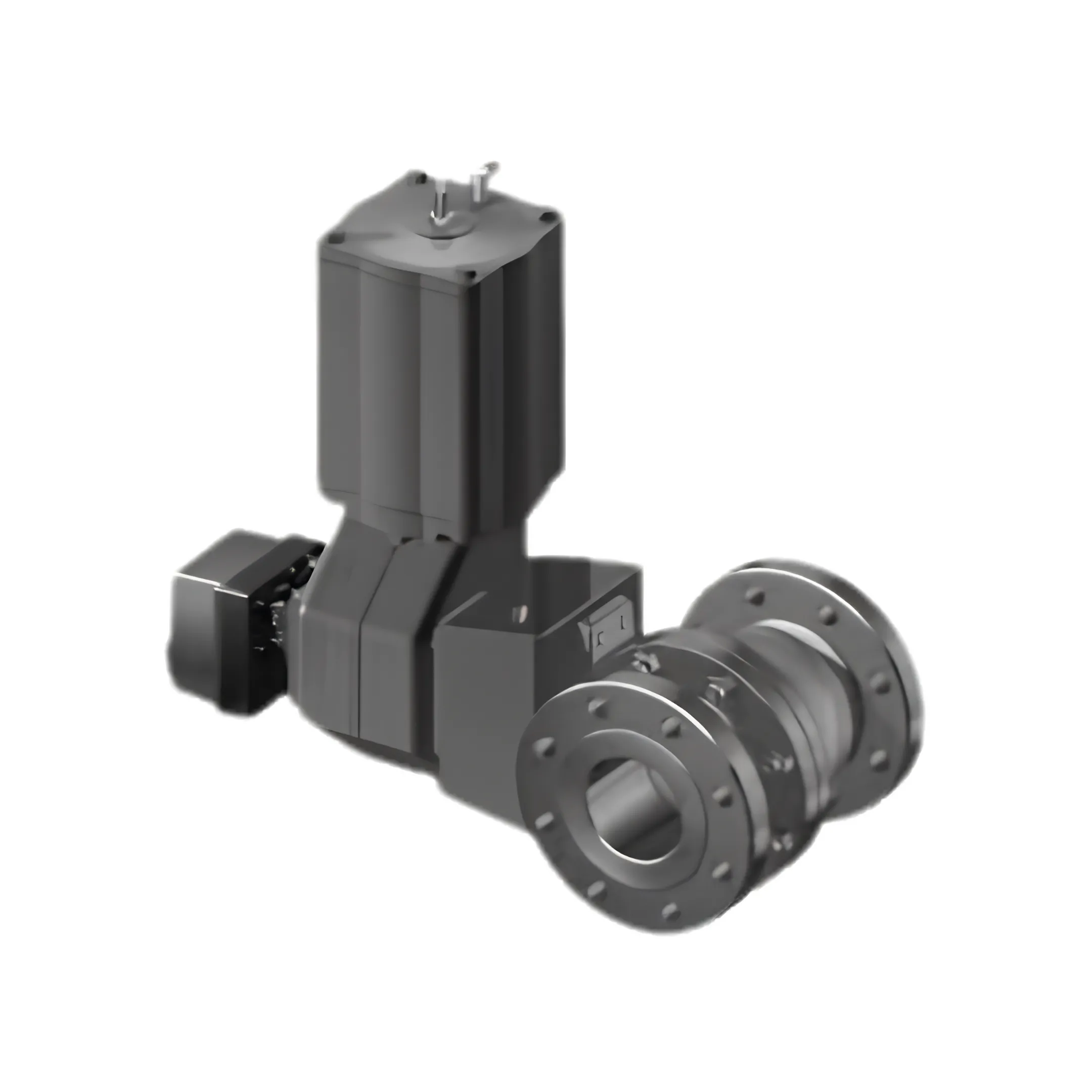

Neles™ – Modular Ball Valve, Series M

Ball Valve Optimized for Variaty of Pulp and Paper Applications
Features

• Material option range suitable for P&P applications
• Tight shut-off and control performance in one package
• Seat types optimized for common P&P application needs
• Metso Q-trim® technology for control applications, anti-cavitation and noise reduction
• SIL 3 certified

Benefits

• Easy product selection, optimized for pulp and paper applications
• Redused number of valves required, shut-off and control performance in same valve
• Redused spare part inventory via product modularity

Specifications
Construction: Flanged, seat supported & trunnion mounted, full bore ball valve
Size range:

• DN 25 – 400 / NPS 1” – 16” (M1)
• DN 25 – 400 / NPS 1” – 16” (M2)
• DN 100 – 400 / NPS 4” – 16” (M9)

Face to face:

• M1: ISO 5752
• M2: ASME B16.10
• M9: Old Neles series P (internal)

Pressure ratings: EN PN 10-40, ASME 150-300, JIS 10K-20K
Temperature range: -50 °C … +260 °C / -60 °F … +500 °F
