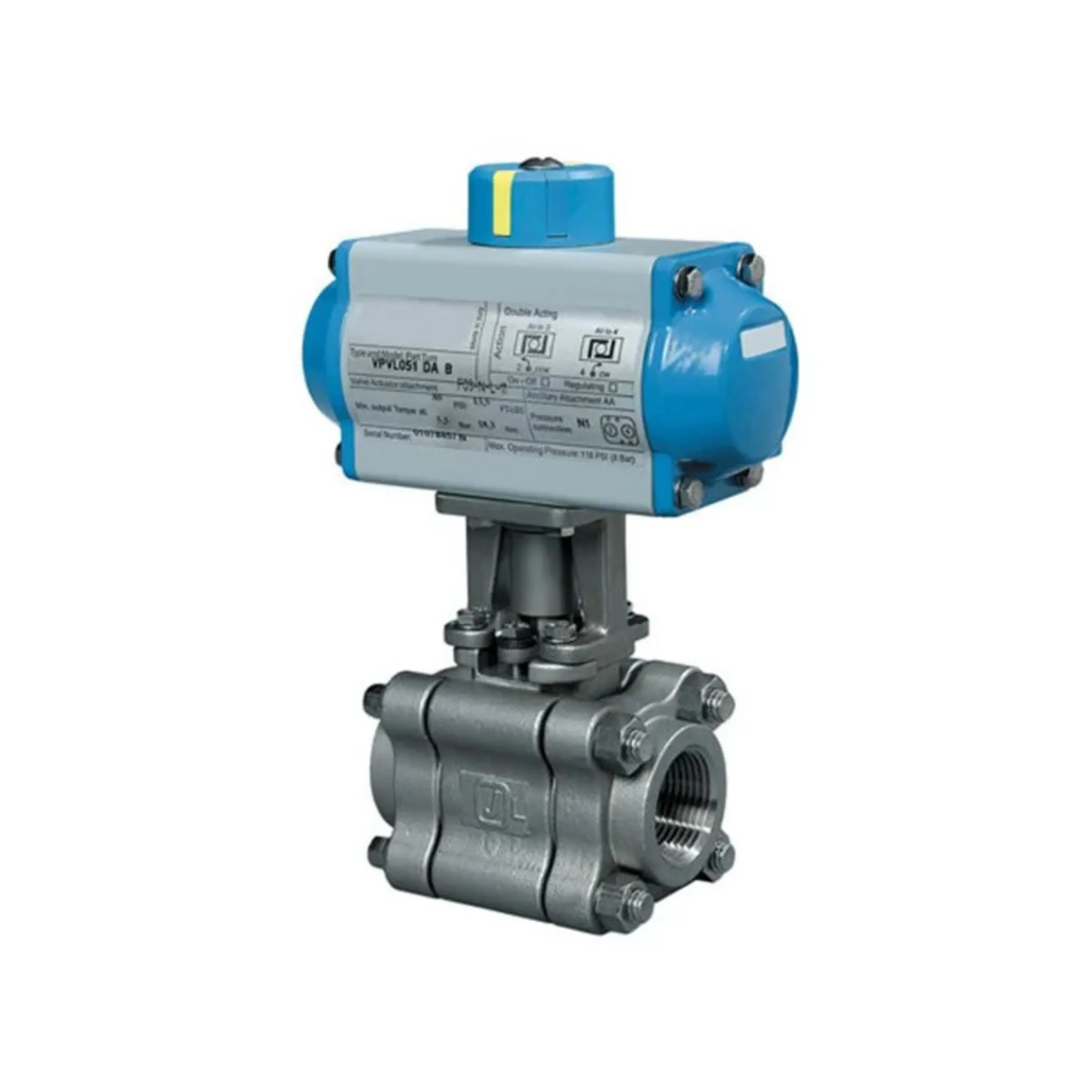

Jamesbury™ – Series 4000 Standard and Full Port Ball Valve

Our best ball valve for many end connections
Features

• Robust engineering design
• Self relieving seat technology
• Patented stem seal technology
• ISO compliant bonnet
• Multiple end connections (Threaded, socket weld, butt weld, custom)
• High quality

Benefits

• Very long service life
• Bi-directional in hazardous media service
• Low fugitive emissions
• Bubble tight shut off
• Automatable

Specifications
Size range 1/2” – 21/2” (DN 15 – 65) standard port
1/2” – 2” (DN 15 – 50) full port
Temperature 260 °C / 500 °F
Pressure rating ANSI Class 800 or CWP to 2500 psi (172 bar) see literature
Materials Carbon Steel, Stainless Steel, Monel, Hastelloy C materials
Standards Meets ISO-15848 and other emissions standards
